Gemini Vision app reads dog expressions and returns a judgment percentage.

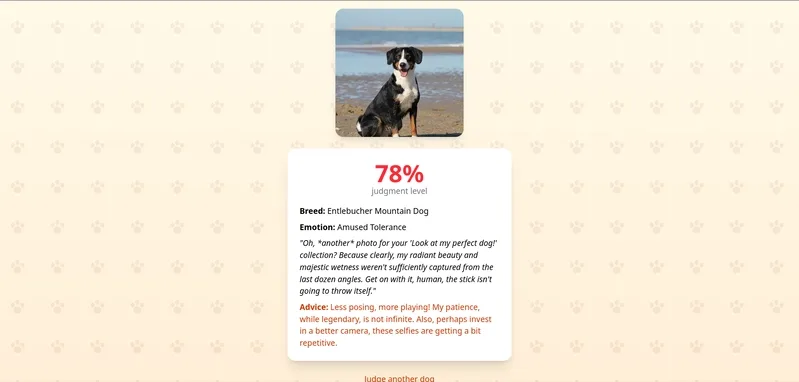

A small app built with Gemini Vision analyzes dog expressions and returns a "judgment percentage." The project served as an experiment with AI workflow patterns, particularly around structured output and deployment.

The technical breakdown

The core of the app is a SvelteKit 5 frontend (using the new runes API) with Tailwind CSS 4, hosted on Netlify. The goal was to build a production-ready tool that won't crash or leak user data.

The most critical part of the AI workflow happens before the image ever reaches the LLM. A client-side pipeline draws the photo onto a canvas and re-exports it as a compressed JPEG. This shrinks the payload for faster API responses and automatically strips EXIF metadata, which is essential for any real-world deployment.

On the backend, a SvelteKit API route calls gemini-2.5-flash. The key to reliability is the responseSchema. Rather than relying on a "please return JSON" prompt—which often fails or comes back wrapped in markdown backticks—the schema forces the model into a strict structure.

Here's the basic logic for the API call:

// Simplified logic for the /api/judge route
const result = await model.generateContent({
  contents: [{ role: 'user', parts: [imagePart, textPart] }],
  generationConfig: {
    responseMimeType: 'application/json',
    responseSchema: {
      type: 'object',
      properties: {
        judgmentLevel: { type: 'number' },
        emotion: { type: 'string' },
        innerMonologue: { type: 'string' },
        advice: { type: 'string' },
        breedGuess: { type: 'string' },
      },
      required: ['judgmentLevel', 'emotion', 'innerMonologue', 'advice', 'breedGuess'],
    },
  },
});

Handling scale and stability

Since this is a public-facing app, the API is protected with Upstash Redis rate limiting using a sliding-window approach (capped at 5 requests per hour per IP). This survives serverless cold starts better than in-memory limiting.

Additional features push this from prototype to production app:

• Input Validation: Strict checks on file size and MIME types.
• Timeouts: The Gemini call has a hard timeout to avoid hanging requests.
• Error States: Clear frontend feedback if the AI service is down or the API key hits a rate limit.

The final touch includes canvas-confetti that fires based on the judgment score, plus a dynamic prompt that uses navigator.language to generate the dog's "inner monologue" in the user's native language. The project demonstrates how pairing a vision model with a strict schema can be effective for building lightweight, interactive AI tools.
